Bitcoin ASIC Miner•NOX-REV-31

NerdOctaxe Revision 3.1 Bitcoin ASIC Miner

Open-source 8-chip miner • 8× BM1370 (S21 Pro) • Up to ~12 TH/s

Batches
Limited runs. Batch 3 is currently available.
Batch 3 • On Sale
Batch 1
Finished
All shipped
Batch 2
Finished
All shipped
Batch 3
On Sale Now
Limited stock
Your configuration
Power Cord: North America
12V 20A power supply included • Select your AC cord / plug type
Price
$499.00
Ships from Houston, Texas, USA
Buy Now
365-day warranty
Ships worldwide
Tracked express delivery
Rev 3.1 — hardware improvements
6-phase VRM, TPS53667 controller, stronger 12V routing + improved decoupling/grounding for stable high clocks and safer sustained performance.
NerdOctaxe Revision 3.1 Bitcoin ASIC Miner
Selected
North America cord
Price
$499.00
Hashrate
Up to ~12 TH/s
Power
~200 W
Efficiency
~15.8 W/TH
Buy Now

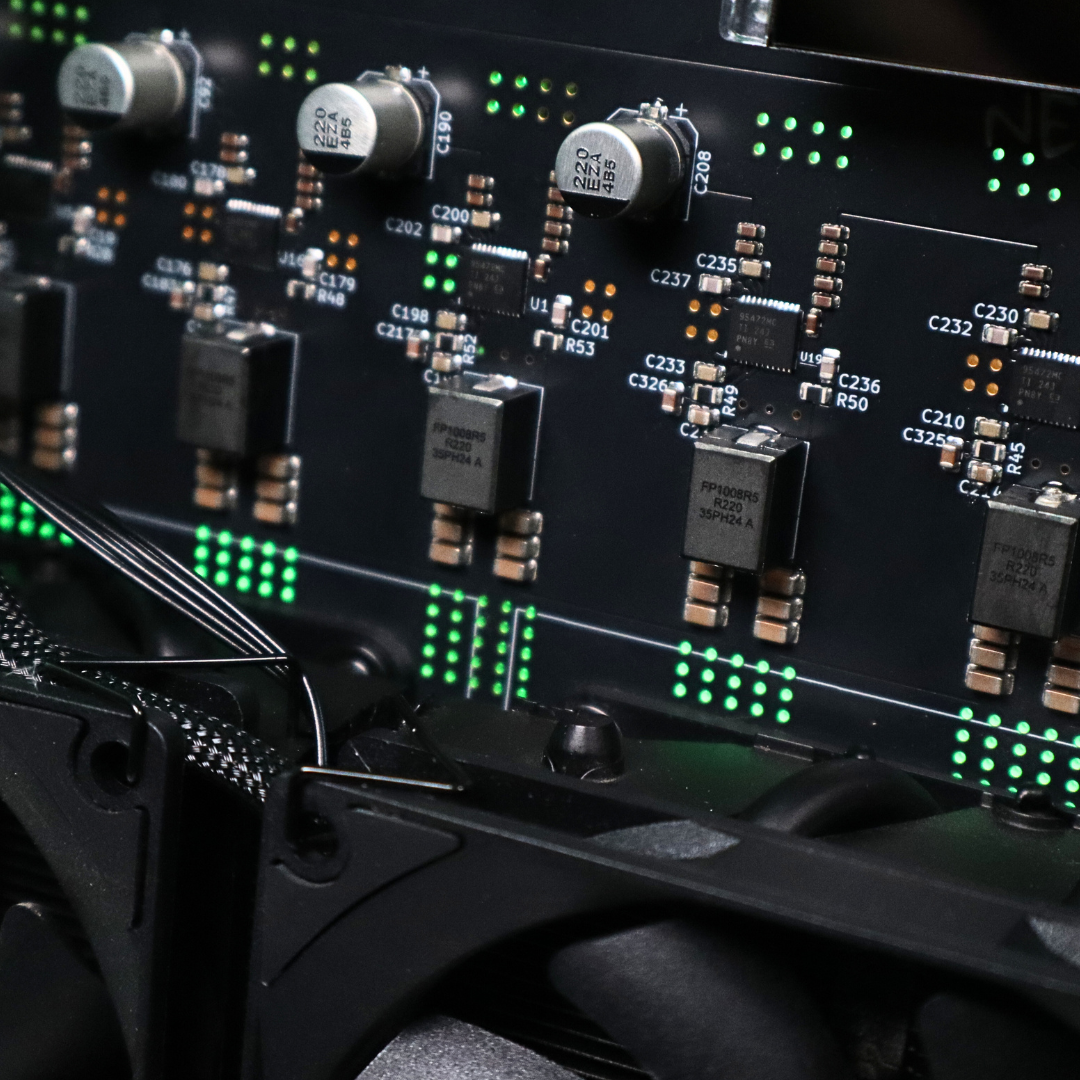

6-phase VRM (Rev 3.1)
Lower per-phase current for better heat distribution and higher stability at frequency.
TPS53667 controller
Enables full 6-phase operation with improved stability at higher clocks.
Cleaner power + thermal behavior
Stronger 12V routing, improved decoupling, and cleaner grounding for sustained performance.

Detailed overview

The NerdOctaxe is a fully open-source Bitcoin ASIC miner built with 8× BM1370 chips from the Antminer S21 Pro. It delivers up to ~12 TH/s with an efficiency of around ~15.8 W/TH, powered by a standard 12 V / 20 A supply.

Firmware + dashboard

Runs a dedicated fork of ESP-Miner (same foundation as NerdQaxe++ / NerdAxe) adapted for the LILYGO T-Display S3. On top, it integrates AxeOS for a clean web dashboard: config, pool management, and full monitoring.

Display
LILYGO T-Display S3
Dashboard
AxeOS
Config
Web UI
Monitoring
Full stats
Open-source lineage

The design is fully open-source and rooted in the Bitaxe Project (created by @Pual91), further refined and extended by @BitMaker_ at Bitronics.

Revision 3.1 note
New power delivery design enables up to ~12 TH/s while maintaining safe and stable thermal performance during continuous operation.

Performance specs

Key specs for NerdOctaxe Rev 3.1.
Summary
Metric
Value
Hashrate
Up to ~12 TH/s
Revision
3.1 (hardware improvements)
ASIC chips
8× BM1370 (Antminer S21 Pro)
Power draw
~200 W (typical)
Efficiency
~15.8 W/TH (approx)
Input
12 V / 20 A (PSU included)
Controller
LILYGO T-Display S3
Firmware
ESP-Miner fork + AxeOS web dashboard
Open-source
Bitaxe Project ecosystem

What’s included

  • NerdOctaxe Rev 3.1 unit (assembled & firmware flashed).
  • Full setup guide.
  • 12V • 20A power supply included.
  • Selected AC power cord / plug chosen during checkout.
Express Delivery
Estimated delivery: 3–7 business days
Ships from Houston, TX • Tracking included
Buy Now

Revision 3.1 improvements

Hardware upgrades (Rev 3.1)
  • 6-Phase VRM (previously 4 phases) for lower per-phase current and better heat distribution.
  • New voltage controller: TPS53667 enabling full 6-phase operation at higher frequencies.
  • Enhanced power distribution and PCB layout: stronger 12V routing, improved decoupling, cleaner ground structure.
  • Better thermal behavior for sustained high performance without throttling.
  • Updated components to reduce BOM variance and simplify partlists/structure.
Mining note
Mining outcomes vary by configuration, pool setup, and network conditions. NerdOctaxe is built for enthusiasts who want transparent, hackable hardware with a clean monitoring experience.
Buy Now

FAQ

Ready to check out?
$499.00 • North America cord
Secure checkout • shipping included
Buy Now
Price
$499.00
North America cord • Express Delivery included
